Coachmen RV Catalina Summit Series 7 Travel Trailer RVs For Sale

Previous
Next
1 of 18

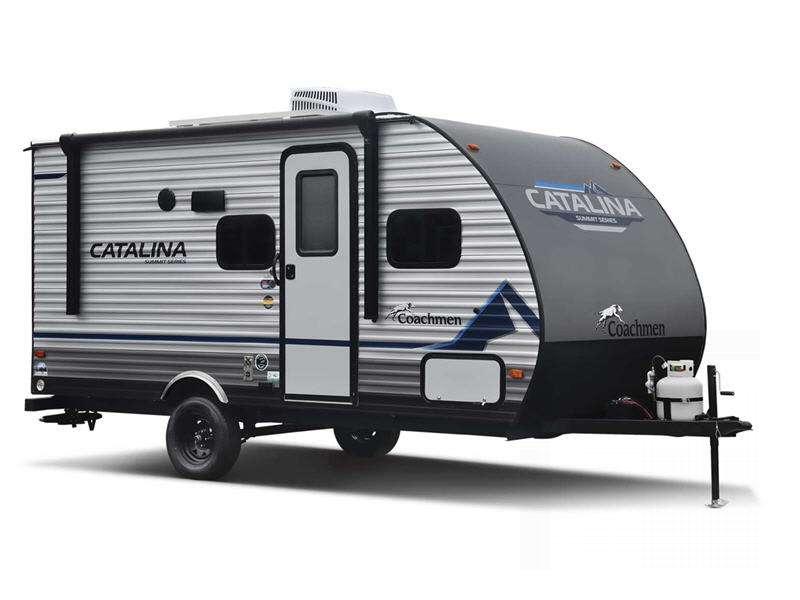

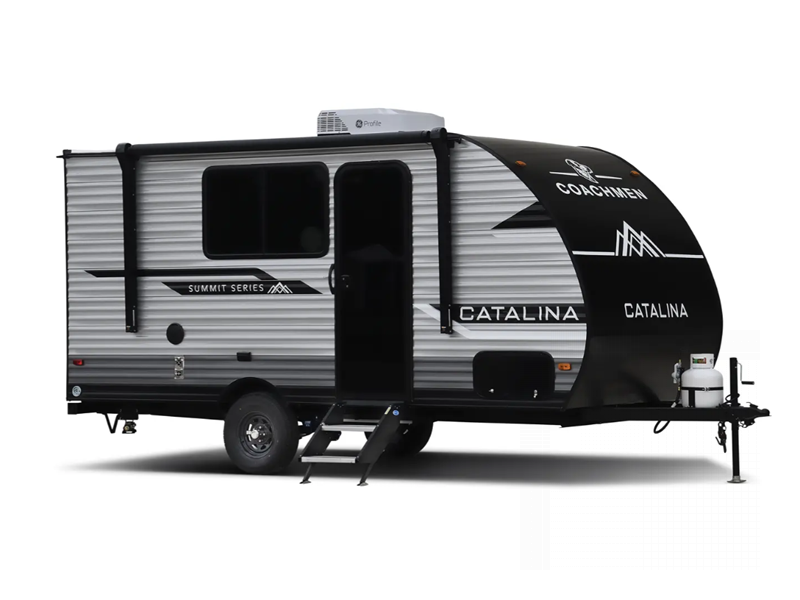

The Catalina Summit 7 travel trailers by Coachmen provide an affordable, lightweight RV that is towable by a wide range of vehicles. No matter which you choose to own, each has a well-designed layout and the comforts you desire!

Each is built on a cambered structural steel l-beam frame, has a 3/8" fully decked walk-on roof, a Darco subfloor protective wrap/enclosure, and Dexter EZ Lube axles with leaf spring suspension.  Also included is a battery disconnect switch, an LP quick connect, a "Leash Link" quick hookup D-ring for your family pet, and rain gutters with drip spouts. The interior offers seamless Thermofoil countertops throughout, a deep basin farm style sink, a master bedroom overhead shelf for your cellphones and such, plus Congoleum woodplank linoleum flooring for easy care.

Make your selection today, take a Coachmen Catalina Summit Series 7 travel trailer on your next camping trip!
  • Specifications

    Sleeps 5
    Length 19 ft 6 in
    Ext Width 7 ft 6 in
    Ext Height 10 ft 1 in
    Hitch Weight 386 lbs
    GVWR 4396 lbs
    Dry Weight 3046 lbs
    Cargo Capacity 1340 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Furnace BTU 19000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Type GE 12V
    Refrigerator Size 10.7 cu ft
    Cooktop Burners 2
    Shower Size 36" x 30"
    Number of Awnings 1
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 10' Power with Multicolored LED Light Strip
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Catalina Summit Series 7 164RB

    Catalina Summit Series 7 164RB Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Summit Series 7 travel trailer 164RB highlights: Rear Bath ... more about Catalina Summit Series 7 164RB

    Specifications

    Sleeps 2
    Length 19 ft 6 in
    Ext Width 7 ft 6 in
    Ext Height 10 ft 1 in
    Hitch Weight 394 lbs
    GVWR 4394 lbs
    Dry Weight 3031 lbs
    Cargo Capacity 1363 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Furnace BTU 19000 btu
    Available Beds Murphy
    Refrigerator Type GE 12V
    Refrigerator Size 10.7 cu ft
    Cooktop Burners 2
    Shower Size 36" x 30"
    Number of Awnings 1
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 10' Power with Multicolored LED Light Strip
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Specifications

    Sleeps 8
    Slides 1
    Length 23 ft 1 in
    Ext Width 7 ft 6 in
    Ext Height 10 ft 1 in
    Hitch Weight 492 lbs
    GVWR 5500 lbs
    Dry Weight 4202 lbs
    Cargo Capacity 1298 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Furnace BTU 19000 btu
    Number Of Bunks 2
    Available Beds Murphy
    Refrigerator Type GE 12V
    Refrigerator Size 10.7 cu ft
    Cooktop Burners 2
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 15' Power with Multicolored LED Light Strip
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Tub/Shower Combo
    Electrical Service 30 amp

    Similar Floorplans

  • Specifications

    Sleeps 4
    Slides 1
    Length 23 ft 1 in
    Ext Width 7 ft 6 in
    Ext Height 10 ft 1 in
    Hitch Weight 396 lbs
    GVWR 4900 lbs
    Dry Weight 3680 lbs
    Cargo Capacity 1220 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Furnace BTU 19000 btu
    Available Beds Queen
    Refrigerator Type 12 Volt
    Refrigerator Size 10 cu ft
    Cooktop Burners 2
    Shower Size 32" x 32"
    Number of Awnings 1
    LP Tank Capacity 20 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 15' Power with Multicolored LED Light Strip
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

  • Catalina Summit Series 7 154RBX

    Catalina Summit Series 7 154RBX Floorplan Image

    This Catalina Summit Series 7 travel trailer 154RBX highlights: Kitchen Pantry ... more about Catalina Summit Series 7 154RBX

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 19 ft 6 in
    Ext Width 7 ft 6 in
    Ext Height 10 ft 1 in
    Hitch Weight 448 lbs
    GVWR 4448 lbs
    Dry Weight 3069 lbs
    Cargo Capacity 1379 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Furnace BTU 19000 btu
    Available Beds Murphy
    Refrigerator Type GE 12V
    Refrigerator Size 10.7 cu ft
    Cooktop Burners 2
    Shower Size 36" x 30"
    Number of Awnings 1
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 10' Power with Multicolored LED Light Strip
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Catalina Summit Series 7 154RDX

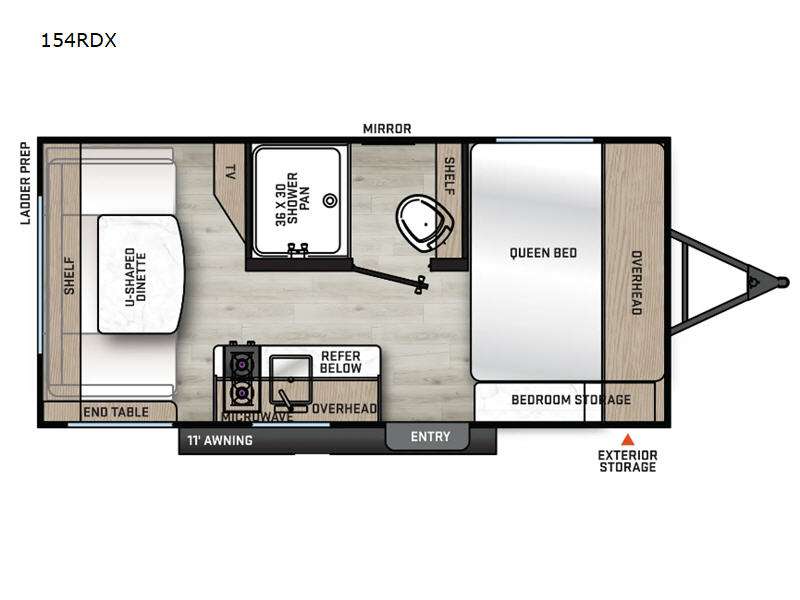

    Catalina Summit Series 7 154RDX Floorplan Image

    This Catalina Summit Series 7 travel trailer 154RDX highlights: U-Dinette GE Two ... more about Catalina Summit Series 7 154RDX

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Length 19 ft 6 in
    Ext Width 7 ft 6 in
    Hitch Weight 372 lbs
    GVWR 4372 lbs
    Dry Weight 2979 lbs
    Cargo Capacity 1393 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Furnace BTU 19000 btu
    Available Beds Queen
    Refrigerator Type GE 12V
    Refrigerator Size 10.7 cu ft
    Cooktop Burners 2
    Shower Size 36" x 30"
    Number of Awnings 1
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 11' Power with Multicolored LED Light Strip
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Catalina Summit Series 7 164BHX

    Catalina Summit Series 7 164BHX Floorplan Image

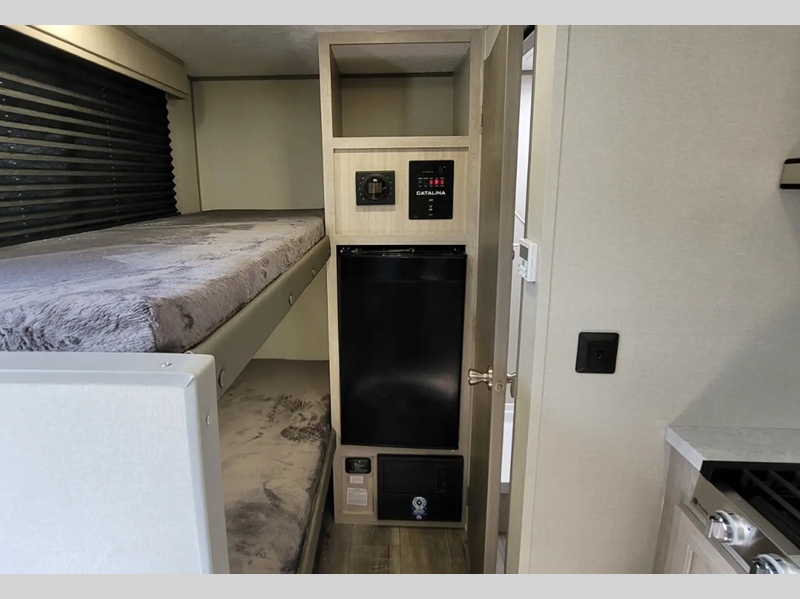

    This Catalina Summit Series 7 travel trailer 164BHX highlights: Bunk Beds Corner ... more about Catalina Summit Series 7 164BHX

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Length 19 ft 6 in
    Ext Width 7 ft 6 in
    Ext Height 10 ft 1 in
    Hitch Weight 396 lbs
    GVWR 4396 lbs
    Dry Weight 2969 lbs
    Cargo Capacity 1427 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Furnace BTU 19000 btu
    Number Of Bunks 2
    Available Beds Queen

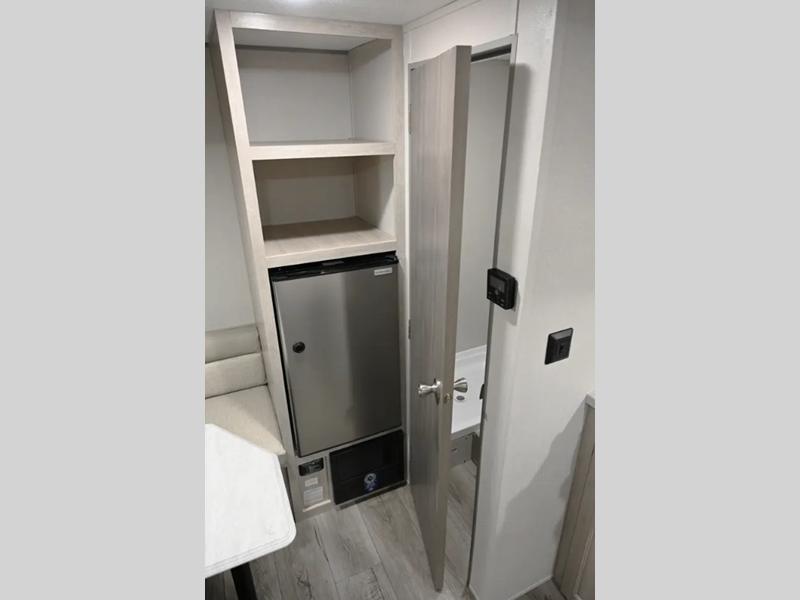

    Refrigerator Type 12V
    Refrigerator Size 3.3 cu ft
    Cooktop Burners 2
    Shower Size 36" x 30"
    Number of Awnings 1
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 10' Power with Multicolored LED Light Strip
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Catalina Summit Series 7 164RBX

    Catalina Summit Series 7 164RBX Floorplan Image

    Take a Virtual Tour

    Coachmen Catalina Summit Series 7 travel trailer 164RBX highlights: Rear Bath ... more about Catalina Summit Series 7 164RBX

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 2
    Length 19 ft 6 in
    Ext Width 7 ft 6 in
    Ext Height 10 ft 1 in
    Hitch Weight 410 lbs
    GVWR 4410 lbs
    Dry Weight 2921 lbs
    Cargo Capacity 1489 lbs
    Fresh Water Capacity 44 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Furnace BTU 19000 btu
    Available Beds Murphy
    Refrigerator Type 12V
    Refrigerator Size 3.3 cu ft
    Cooktop Burners 2
    Shower Size 36" x 30"
    Number of Awnings 1
    LP Tank Capacity 20 lbs.
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Awning Info 10' Power with Multicolored LED Light Strip
    Axle Count 1
    Number of LP Tanks 1
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

Catalina Summit Series 7 Features:

Standard Features (2024)



Exterior

  • Electric Awning w/Multicolor LED Strip & Remote
  • Black Tank Flush
  • Battery Disconnect Switch
  • Siphon 360 Holding Tank Roof Vent
  • Heavy Duty Standard Tongue Jack
  • (1)20lb. LP Tanks
  • LP Quick Connect (w/CK)
  • Flush Mount Baggage Doors w/Radius Corners
  • Diamond Plate Rock Guard
  • Stabilizer Jacks
  • G20 Tinted Privacy Windows
  • Premium JBL Exterior Speakers
  • Friction Hinge Door
  • Radius Cornered Fiberglass Entry Door
  • Exterior 110V G.F.C.I Protected Receptacle
  • Exterior RG-6 Coax Cabling and Satellite Prep
  • Rain Gutters with Drip Spouts
  • MORryde StepAbove Solid Steps (N/A 164BHX, 164RBX)
  • Rear View Camera Prep
  • Bottle Openers (Exterior Camp Kitchens)
  • Pets - "Leash Link" Quick Hookup D-Ring
  • Universal Solar Prep w/Roof & Chg. Controller Connections & Wiring
  • Rear Ladder Prep

Interior

  • RV-Link 4G LTE Remote Connect, WiFi, Booster, and Extender Prep
  • One Control Smart RV Tech Monitor Panel (uses LCI OneControl - App)
  • Premium Audio JBL Aura Cube Multi-Zone Function Media Center
  • Premium JBL Interior Speaker(s)

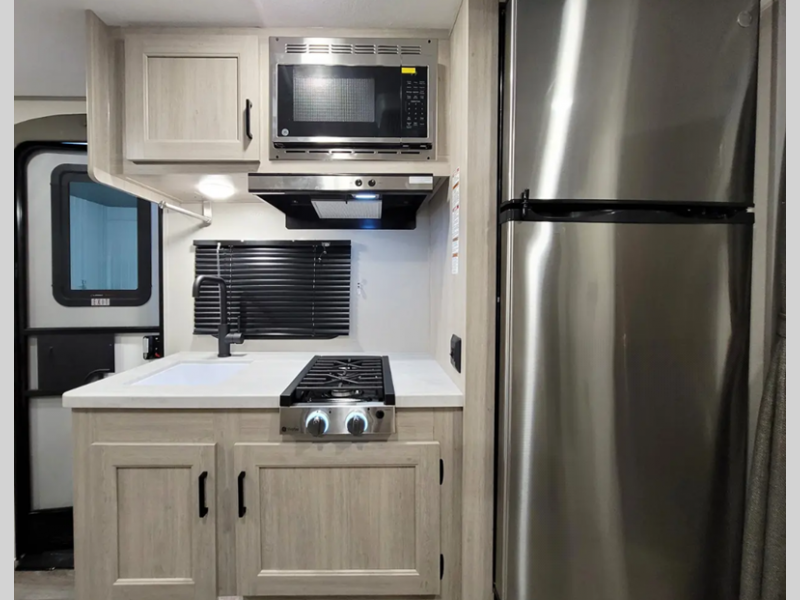

  • GE 10.7 Cu. Ft. 12V Refrigerator (3.3 Cu. Ft. 12V Refrigerator 164BHX, 164RBX)
  • Seamless Thermofoil Countertops Throughout
  • Deep Basin Farm Style Sink
  • High Rise Bullet Style Kitchen Faucet
  • GE Stainless 2-Burner Cooktop with Metal Back-Lit Knobs
  • Range Hood
  • GE Stainless Microwave W/Glass Turn Table
  • Congoleum Woodplank Linoleum Flooring
  • 4000 Lumin LED Interior Touch Lighting

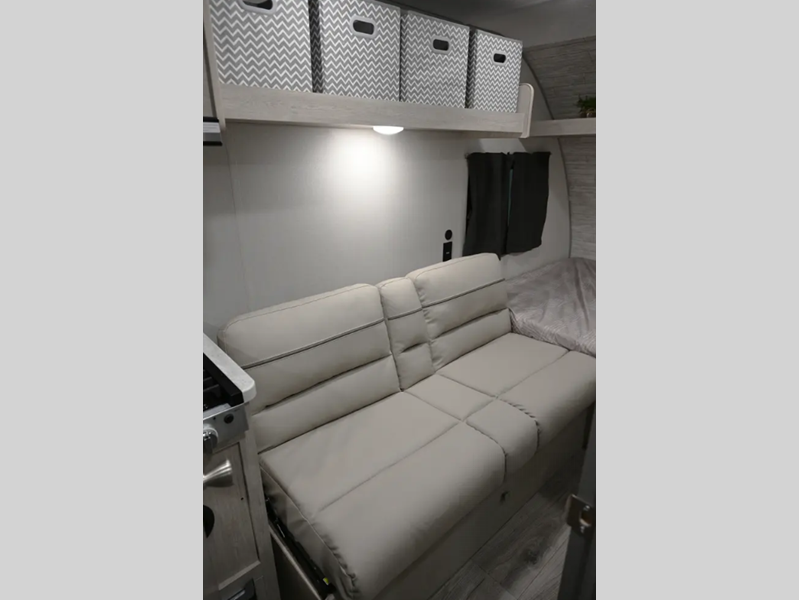

  • Jiffy Sofa w/Flip Down Cup Holder/Arm Rest

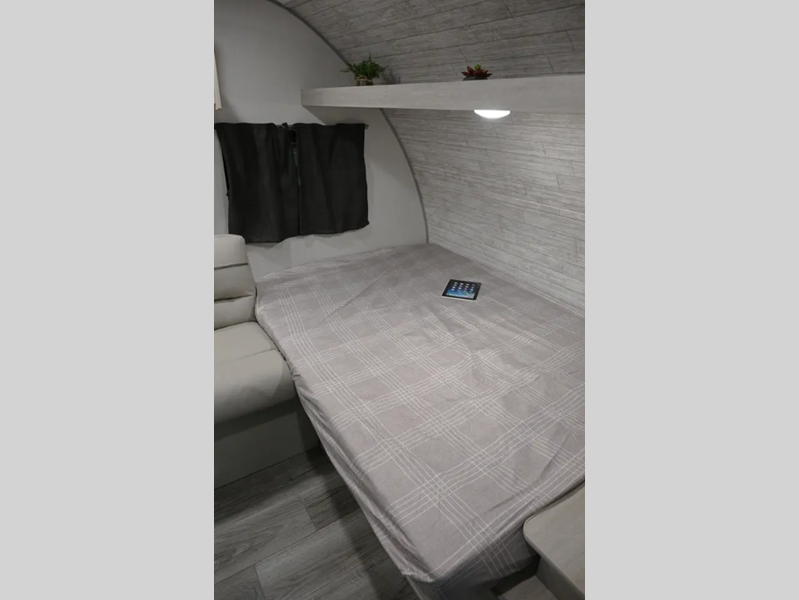

  • Murphy Bed Sofa (Per floorplan)
  • Hard Valance Window Treatments
  • Pedestal Thermofoil Dinette Table (184BHS)
  • Portable Dinette Table (N/A 184BHS, 164BHX, 164RBX)
  • Under Bench Dinette Storage (Per Floorplan)
  • 12V 14" Bathroom Power Vent Fan
  • Marine Toilet with Foot Flush
  • ABS Tub/Shower Surround w/Shelves (N/A 164BHX, 164RBX)
  • Mirror
  • Bedroom Surface Mounts USB Ports (Each Night Stand)
  • Kitchen USB's & Outlets
  • USB Surface Mounts Near Bunk Beds
  • Master Bedroom Overhead Shelf
  • Designer Fitted Master Bed Sheet
  • Teddy Bear Bunk Mats
  • Full Lino in Slide-Outs and Bedrooms (Carpetless)
  • Shower/Coat Hooks

Construction & Equipment

  • Cambered Structural Steel I-Beam Frame
  • Norco Electromagnetic, Powder Coated Chassis
  • Full Length Frame Outriggers
  • 5/8" Tongue & Groove StableDeck Flooring
  • 2"x2" Floor Joists on Approximately 12" Centers
  • 4" Floor To Frame Steel Lag Bolts
  • Darco Subfloor Protective Wrap/Enclosure
  • Seamless Alpha Roof Membrane with Lifetime Warranty
  • Cross-Braced Engineered Roof Trusses w/5" Crown
  • 3/8" Fully Decked Walk-On Roof
  • Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
  • 5/8" Plywood Under Bed & Dinette Base
  • 78" Interior Height (6'6")
  • Norco Cable Slide Out
  • R-7 Fiberglass Insulation Throughout
  • GE 6 Gal. Gas/Electric DSI Water Heater
  • Water Heater By-Pass Winterization Kit
  • 12V Demand Water Pump
  • Premium Exterior Graphics Package
  • Platinum .024" Aluminum Exterior w/.030 Skirt Metal
  • Smooth HD Aluminum Radius Front
  • Dexter EZ Lube Axles w/Leaf Spring Suspension
  • Self Adjusting Brakes
  • Roto-Cast Holding Tanks
  • Bumper w/ Drain Hose Carrier and End Caps
  • 19,000 BTU Direct Furnace w/Wall Thermostat
  • GE 13,500 BTU Central A/C
  • 30 Amp Elect. Service w/ 100v 45-Amp Power Covt.
  • Rugged Pro Black Steel Wheels
  • Magnetic Hands Free Baggage Door Latches

Safety Features

  • Smoke Alarm
  • LP/CO Gas Detector
  • Fire Extinguisher
  • Fire Escape Windows
  • Entrance Door Window
  • Dead-Bolt Lock on Entry Door

Options

  • 7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversible Door Inserts (N/A 164BHX, 164RBX)
  • Peak Performance Solar Package - 30A Controller w/ 200W Panel (N/A 164BHX, 164RBX)
  • Steel Fold-Down Steps IPO MORryde StepAbove Solid Steps (N/A 164BHX, 164RBX)

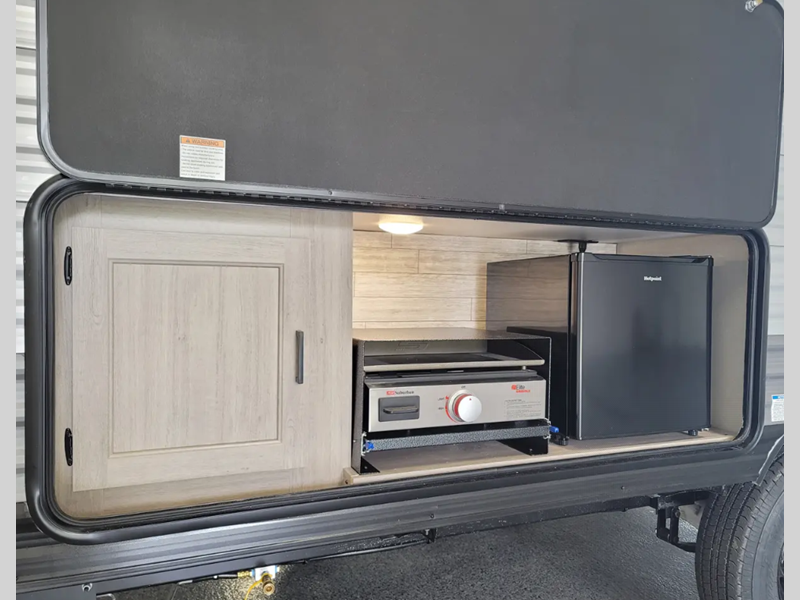

  • Exterior Camp Kitchen (184BHS)
  • Spare Tire (184BHS)
  • CSA Standards

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.



Manu-Facts:

Coachmen RV Logo

Coachmen RV is built upon a simple principle… "Dedicated to the enrichment of your life." By providing you with long term value through all that we do, our focus is on providing a product with superior value and backing it through superior service and support. Once you become a Coachmen owner, we are committed to enhancing your Coachmen RV ownership and lifestyle experience… creating friends for life and memories that will last a lifetime.



At Coachmen you will find a rich history of commitment from our Team Members. This commitment extends to our owners and in the pride we have for our brand. The close relationship that we share with our owners and our dealers is a quality that others have been trying to mimic over our 57 year history. Our goals and principles remain well in focus.
