New 2023 Coachmen RV Catalina Trail Blazer 26TH

Toy Hauler Travel Trailer

Stock #CA1169

Twin Falls, ID

This Catalina Trail Blazer is equipped with the following performance upgrade(s): *Ramp Patio Door System *RV Gas/ Electric refrigerator with reversible door inserts *Enclosed Underbelly *TOYLOCk Security Cable *Black Out Rear Wall Screen

STOCK PHOTO
STOCK PHOTO
STOCK PHOTO

1 of 10

+10

Sale Price: $32,995
MSRP: $45,233
Save: $12,238

Payments From: $277 /mo.

Sleeps 4
Walk-Thru Bath

Front Bedroom

30ft Long
5,486 lbs
JAVA

See All Specs

Specifications

Sleeps	4	Length	30 ft
Ext Width	8 ft	Ext Height	10 ft 7 in
Int Height	6 ft 9 in	Interior Color	JAVA
Exterior Color	GRAY	Hitch Weight	957 lbs
GVWR	7900 lbs	Dry Weight	5486 lbs
Cargo Capacity	2414 lbs	Fresh Water Capacity	44 gals
Grey Water Capacity	40 gals	Black Water Capacity	30 gals
Furnace BTU	30000 btu	Available Beds	Queen
Refrigerator Type	12V	Refrigerator Size	10 cu ft
Cooktop Burners	3	Shower Size	34" x 34"
Number of Awnings	1	Garage Size	11 ft 6 in
LP Tank Capacity	20 lbs	Water Heater Capacity	6 gal
Water Heater Type	Gas/Electric DSI	AC BTU	13500 btu
Awning Info	15' Electric with Multi-Color Lights	Axle Count	2
Number of LP Tanks	2	Shower Type	Radius
Electrical Service	30 amp	VIN	5ZT2CARB7PU041169

Description

This Catalina Trail Blazer is equipped with the following performance upgrade(s):

*Ramp Patio Door System
*RV Gas/ Electric refrigerator with reversible door inserts
*Enclosed Underbelly
*Power Tongue Jack
*TOYLOCk Security Cable
*Black Out Rear Wall Screen
*Roof Top Solar Prep

Coachmen Catalina Trail Blazer toy hauler 26TH highlights:

Fold-Down Sofas
Queen Bed
15' Awning
11' 6" Garage
Outside Shower

There are many reasons that you will want to own this Catalina Trail Blazer toy hauler, but one of those reasons is the great walk-through bathroom! Since there are entry doors on either side of this bathroom, you can access it from the main living area as well as from the front private bedroom. There is also a little bit of extra space in the bathroom since it spans the width of the trailer, and the shower skylight keeps this area bright. You'll definitely be spending most of your time out on the trails riding your bikes or out on the lake paddling your kayaks, but when you do come back inside this trailer, you will be met with two fold-down sofas, and you might want to add the optional recliners. You'll also find Rock Run reinforced interior drive on wheel wells on this model!

The best looking, most affordable toy hauler is found in the Catalina Trailer Blazer by Coachmen. Each one is constructed with a seamless alpha roof membrane, an enclosed and fully sealed underbelly, and a cambered structural steel I-beam frame for added support. There is a rear loading cargo door with a 3,000 lb. capacity, a black out screen wall with a zip walk-thru and windows, plus 500 lb. tie-downs to secure your toys. You'll love the interior with its Congoleum woodplank linoleum flooring, pleated night shades, and 4,000 lumen interior lighting. Head outside to find an electric awning with multicolored LED lights and a remote, a 15' Toy Loc cable, a "Leash Link" quick hookup D-ring for pets, and upgraded aluminum wheels. The Catalina Trail Blazer also comes with Magnydyne 4G LTE connectivity with a WiFi booster and extender, a JBL Aura MP3/FM stereo with Bluetooth, plus two multizone JBL premium interior speakers to ensure you'll never go bored!

Options:

*Ramp Patio Door System *RV Gas/ Electric refrigerator with reversible door inserts *Enclosed Underbelly *Power Tongue Jack *TOYLOCk Security Cable *Black Out Rear Wall Screen

BE SURE AND ASK US ABOUT OUR XTREME ADVANTAGE PACKAGE!!

Features

Standard Features (2023)

Exterior

Electric Awning w/Multicolor LED Strip & Remote
Black Tank Flush
Battery Disconnect Switch
Siphon 360 Holding Tank Roof Vent
Electric Tongue Jack
Hot/Cold Outside Utility Shower w/ Hands Free Holder
(2)20 lb. LP Tanks
Black ABS LP Bottle Cover
LP Quick Connect
Flush Mount Baggage Doors w/Radius Corners
Diamond Plate Rock Guard
Stabilizer Jacks
G20 Tinted Privacy Windows
Premium JBL Exterior Speakers(s)
Friction Hinge Door
Radius Cornered Fiberglass Entry Door
Exterior 110V G.F.C.I Protected Receptacle
Exterior RG-6 Coax Cabling and Satellite Prep
Exterior TV Hookup
Rain Gutters with Drip Spouts
MORryde StepAbove Solid Steps (Main Entrance Only)
Safe-T-Rail Door Assist on Main Entry Door
Rear View Camera Prep
15' Toy Loc Cable
Lockable Ramp Door Latches
Rear LED Loading Lights
Pets - "Leash Link" Quick Hookup D-Ring
Universal Solar Prep w/Roof & Chg. Controller Connections & Wiring

Interior

One Control Smart RV Tech Monitor Panel (uses LCI OneControl - App)
RV-LINK 4G LTE Remote Connect, WiFi, Booster, and Extender
Premium Audio JBL Aura Cube Multi-Zone Function Media Center
Premium JBL Interior Speakers
GE Stainless 10 Cu. Ft. 12V Refrigerator
Seamless Thermofoil Countertops Throughout
Deep Basin Farm Style Sink
Residential Kitchen Faucet w/Pull Down Sprayer
Stainless Steel Drying Rack
GE Stainless 3 Burner Range with Metal Back-Lit Knobs
Range Hood
GE Stainless Microwave W/Glass Turn Table
Congoleum Woodplank Linoleum Flooring
4000 Lumin LED Interior Touch Lighting
Hard Valance Window Treatments
Pedestal Thermofoil Dinette Table (27THS, 29THS)
Portable Dinette Table (N/A 27THS)
Under Bench Dinette Storage (27THS, 29THS)
Easy Access Booth Dinette Storage Doors (27THS, 29THS)
12V 14" Living Room Power Vent Fan
12V 14" Bathroom Power Vent Fan
Marine Toilet with Foot Flush
ABS Tub/Shower Surround w/Shelves
Skylight Above Tub/Shower
Glass Step-In Shower w/ABS Surround (Per Floorplan)
Medicine Wall Cabinet with Mirror
Bedroom Surface Mounts USB Ports (Each Night Stand)
Kitchen USB's & Outlets
Solid Master Bedroom Door(s) (Per Floorplan)
Full Length Night Stands (N/A Bed Slide-Outs)
Mirrored Wardrobes in Master Bedroom
Master Bedroom Overhead Cabinets
Underbed Storage w/Separation from Outside Front Storage
Designer Fitted Master Bed Sheet
Full Lino in Slide-Outs and Bedrooms (Carpetless)
Raised Ceiling w/Cargo Area HappiJac Bed Lift (28THS, 30THS)
500 lb. Tie Down - 10-12 Ties per Floorplan
Rear Loading Cargo Door w/3,000 lb. Capacity
Black Out Screen Wall w/Zip Walk-Thru & Windows
Rock Run Reinforced Interior Drive On Wheel Wells (26TH Only)
SLS (Sit-Lounge-Sleep) Sofa with Interior Storage (27THS)
Shower/Coat Hooks

Construction & Equipment

Cambered Structural Steel I-Beam Frame
Norco Electromagnetic, Powder Coated Chassis
Full Length Frame Outriggers
5/8" Tongue & Groove Plywood Floor Decking
2"x3" Floor Joists on Approximately 12" Centers
5" Floor To Frame Steel Lag Bolts
Enclosed, Fully Sealed Corrugated Underbelly
Darco Subfloor Protective Wrap/Enclosure
Seamless Alpha Roof Membrane with Lifetime Warranty
Cross-Braced Engineered Roof Trusses w/5" Crown
3/8" Fully Decked Walk-On Roof
Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
5/8" Plywood Under Bed & Dinette Base
81" Interior Height (6' 9")
Easy-Trac Rack and Pinion Through Frame Main Slide-Out(s)
Schwintek Slide Out
R-7 Fiberglass Insulation Throughout
GE 6 Gal. Gas/Electric DSI Water Heater
Water Heater By-Pass Winterization Kit
12V Demand Water Pump
Premium Exterior Graphics Package
Upgraded Front Graphics Design
Platinum .024" Aluminum Exterior w/.030 Skirt Metal
Smooth HD Aluminum Radius Front
Polished HD Aluminum Fender Skirts
Spare Tire
Dexter EZ Lube Axles w/Leaf Spring Suspension
Self Adjusting Brakes
Roto-Cast Holding Tanks
Bumper w/ Drain Hose Carrier and End Caps
30,000 BTU Auto-Ignition Furnace w/Wall Thermostat
Flex Ducted Cabinet/Wall Heat
GE 13,500 BTU Fully Ducted A/C
30 Amp Elect. Service w/ 100v 45-Amp Power Covt.
Upgraded Aluminum Wheels
Magnetic Hands Free Baggage Door Latches

Safety

Smoke Alarm
LP/CO Gas Detector
Fire Extinguisher
Fire Escape Windows
Entrance Door Window
Dead-Bolt Lock on Entry Door

Options

7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversable Door Inserts
GE 15,000 BTU Ducted A/C IPO 13.5 A/C
50 Amp Service w/ 2nd 13.5 A/C (N/A 26TH)
50 Amp Service w/2nd A/C Prep (N/A 26TH)
Peak Performance Solar Package - 30A Controller w/ 200W Panel
Thomas Paine Theater Seating with Reclining Features (27THS & 29THS)
Steel Fold-Down Steps IPO MORryde StepAbove Solid Steps
Ramp Door Patio & Railing System
Fuel Station w/ 30 Gallon Fuel Tank (N/A 26TH, 27THS)
CSA Standards
(2) Pushback Recliners (26TH, 28THS Only)

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Had a great experience with Xtreme RV
Had a great experience with Xtreme RV. Everyone was helpful, kind, and wonderful, and I made it home with zero problems. My wife loved her sweatshirt, and I now have a new favorite hat.Absolutely love my new Stealth! Friends and family flocked to my home to see why I would drive so far to get that specific

Mark
Chad was very helpful
Chad was very helpful with all the details of making are wishes that we wanted in our fifth wheel. His knowledge of everything is amazing and his team he works with. We appreciated his kindness and he made us feel important and valued. You are blessed to have him on your team.

Debbie from KS
Wayde is running an awesome business out there
Xtreme RV is awesome! I bought my camper a few years back and I’ve enjoyed getting to know the employees there as I go back every once in a while. Randy Liles is awesome in the sales department, the service department has been wonderful to work with and they are very professional and I know Wayde is

R. from Twin Falls, ID

We are here to help, call us at
208-825-9876 or Contact Us

We are here to help!

208-825-9876
Contact Us
Get Smaller Price

Xtreme RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @208-825-9876 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2023 Coachmen RV Catalina Trail Blazer 26TH

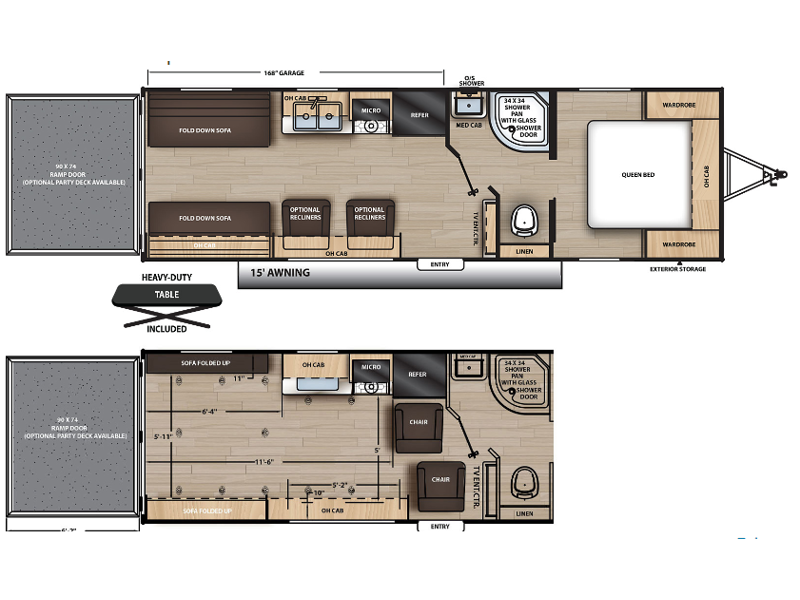

26TH Floorplan
