+6-
30ft long
-
7,662 lbs
-
Sleeps 6
-
1 slides
-
Front Bedroom

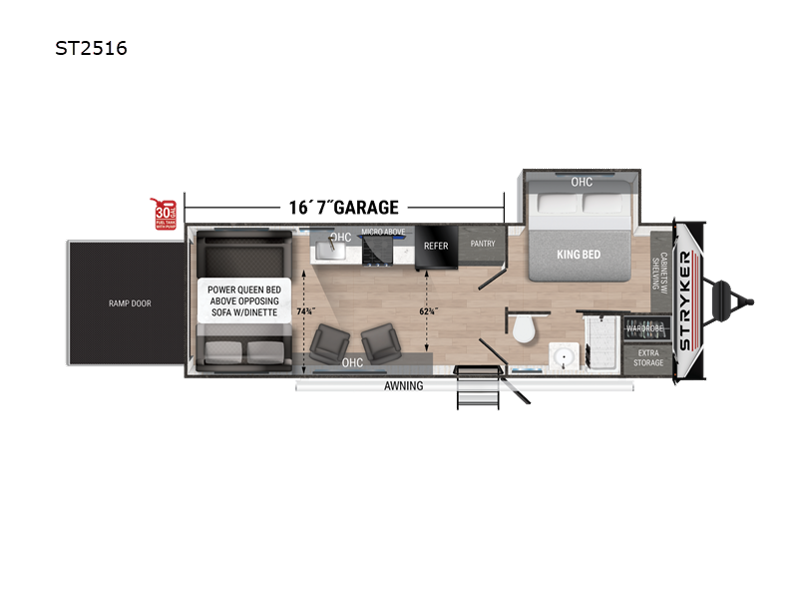

ST2516 Floorplan
Specifications
| Sleeps | 6 | Slides | 1 |
| Length | 29 ft 11 in | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 10 in | Interior Color | OBSIDIAN |
| Exterior Color | WHITE | Hitch Weight | 1112 lbs |
| GVWR | 12800 lbs | Dry Weight | 7662 lbs |
| Cargo Capacity | 5090 lbs | Fresh Water Capacity | 98 gals |
| Grey Water Capacity | 87 gals | Black Water Capacity | 30 gals |
| Tire Size | 16" | Furnace BTU | 35000 btu |
| Fuel Capacity | 30 gals | Number Of Bunks | 1 |
| Available Beds | King | Refrigerator Type | 110/LP |
| Refrigerator Size | 8 cu ft | Cooktop Burners | 3 |
| Number of Awnings | 1 | Axle Weight | 6000 lbs |
| Garage Size | 16 ft 7 in | LP Tank Capacity | 30 lbs. |
| Water Heater Capacity | 10 gal | Water Heater Type | LP/110/DSI |
| AC BTU | 15000 btu | Awning Info | 19' with LED Lights |
| Axle Count | 2 | Number of LP Tanks | 2 |
| Shower Type | Standard | Electrical Service | 30 amp |
| VIN | 5RXGB302XP1524527 |
Description
Cruiser Stryker toy hauler ST2516 highlights:
- King Bed
- 30 Gallon Fuel Station
- 19' Power Awning with LED Lights
- 8 Cu. Ft. Refrigerator
The Cruiser Stryker ST2516 toy hauler is ready to go on a road trip! A 16'7" garage will provide plenty of space for all your toys, but there's a lot of living space too. A king bed slide out gives you a spacious bedroom with lots of floor area, plus storage with cabinets and a wardrobe. The garage has opposing sofas with a dinette so there's a great space for meals, and a power queen bed above for more sleeping space. The kitchen includes an 8 cu. ft. refrigerator, microwave, and three-burner range. Two chairs mean there's a place for guests to sit and chat while you cook!
Each Stryker toy hauler travel trailer by Cruiser starts with a powder coated structural steel I-beam frame, Azdel composite laminated sidewalls, and a 102" wide body, perfect for your side-by-side, dirt bikes, or kayaks! The EZ flex rubberized suspension provides smooth towing on tougher roads, and the painted molded fiberglass front cap not only looks sleek, but provides better protection. Inside, you'll find barreled ceilings up to 98" in height, hardwood cabinet doors, solid surface kitchen cabinets, and numerous USB ports and 110V outlets. The removable carpet in the garage will create an open concept you are sure to love, and the industry-first pet palace under the bed will allow you to bring your loyal furry friends along. There's so much more to love about the Stryker toy haulers, like the premium sound system, the large windows, tons of storage space, and the list goes on!
Features
Standard Features (2023)
Top Selling Features
- Painted, molded fiberglass front cap
- Upgraded suspension with greaseable shackle bolts and 16" E-Rated tires
- Azdel composite laminated sidewalls
- Generator prep with 30 gallon fuel tank and fuel pump for toys
- Easy load 8 foot ramp door with beavertail transition at garage entry
- Patent Pending king bed slide system
- Enhance cargo space with 5,000 lb. tie down rings
- Premium sound system with amplifier, subwoofer, and indoor/outdoor speakers
- Large windows with blackout roller shades
- 5/8" Tongue and groove plywood flooring
Exterior Features
- 5 sided aluminum framing
- Rubberized suspension and gas piston shocks (n/a STG 3212)
- 16” E rated tires and aluminum rims
- Industry leading axles with self-adjust brakes
- Galvanized Steel Wheel Wells
- Rear and side LED flood lights
- Rain-away barreled roof
- Surround seal slide system with rain gutter
- XL baggage doors with slam latches and magnet catches
- Power tongue and stabilizer jacks
- 30” main entry door with large foldable grab handle
- Dual 30 lb. LP tanks
- Large power awning with LED lights
- Large tinted windows
- TPO roof membrane
- Extended season package including radiant foil and ducted heat
- Foldable roof ladder
- WiFi prepped long range antenna
- 15k BTU A/C
- 10 gal. LP/110/DSI water heater
- Exterior speakers
- Black tank flush
- Spray port
- Cable/Satellite prep
Interior Features
- Industry first pet palace under bed
- Solid surface kitchen countertops
- Barreled ceilings up to 98” in height
- LED lighting
- Dual ducted a/c system
- Numerous 110 & USB outlets
- Premium sound system with amplifier, subwoofer, and Bluetooth
- Large windows with blackout roller shades
- Hardwood cabinet doors w/ hidden hinges
- Roller bearing drawer guides
- Stainless sink w/ high rise faucet
- 108 Gallon fresh water capacity
- Flush mount 3 burner range/over w/ glass cover
- 8 cubic ft. gas/ electric refrigerator
- Easy to operate master control panel
- Battery disconnect
- Indoor / outdoor table
- Removable carpet for open concept garage areas
- Dual power Happi-Jac opposing sofa beds in garages w/ queen bed above
Construction
- Garage lengths from 12' 6" up to 16' 4"
- Minimum garage width for loading- 72"
- Maximum garage height for loading- 86"
- Powder coated structural steel I-beam frame
- Up to 3X the amount of required full height cross members b/w I-beam frame
- 5000 lb. Max-Hold bolted tie down rings
- 102" Wide body
- Galvanized Steel Wheel Wells
- EZ Flex Rubberized Suspension
- Gas piston shocks (n/a STG 3212)
- Greaseable shackle bolts and 16" E-Rated tires
- Easy-load 8' Ramp door w/ beavertail entry
- Standard generator prep w/ 30 gal. fuel tank
- Azdel composite laminated sidewalls
- Aluminum framing
- 5/8” tongue & groove plywood floors
- ¾” plywood slide out floors with plast-tex coating
- Plywood drawers, bed and bunk bases
Tires & Axles Standard Features
- Dexter Axles w/ easy lube hubs & never adjust brakes & extended warranty
- EZ Flex Rubberized Suspension
- Gas piston shocks (n/a STG 3212)
- Greaseable shackle bolts and 16" E-Rated tires
- Galvanized Steel Wheel Wells
- Spare Tire
Bedroom
- King Bed
- Hanging storage
- USB charging ports
- Ceiling vent with fan
- Tall ceiling height
- Wide-body construction for more space
Kitchen
- Solid surface kitchen counter tops
- Solid wood cabinet doors with hidden hinges
- Steel ball bearing full extension drawer guides
- High rise kitchen pull-out faucet
- 3 burner range with oven
- Large residential microwave oven
- 8 cu. ft. gas / electric refrigerator
- Stainless steel under mount sink
- Power range hood with light
Bathroom
- Spacious shower
- Skylight over shower
- Ceiling vent with fan
- Large medicine cabinet with mirror
- High rise faucet over sink
- Seamless edge countertop
- Bonus shelf with towel hangers
Standard Safety Features
- Fire extinguisher
- LP detector
- Smoke detector
- Spare tire
- Reverse feature on fuel pump to clear fuel line
Options
- Onan RV QG 4000 EVAP Generator
- Onan 5500 Gen w/50 amp & 2nd A/C Prep
- 2nd 13.5K BTU A/C (requires 50 amp)
- 50 Amp Service w/2nd A/C Prep
- 18 Gallon Fuel Tank for Generator (n/a 2313, 2714)
- Rear Ramp Patio with Folding Rails
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
